Reconstructing Pew approval time series

August 6, 2018

library(ggplot2)
library(dplyr)
library(magrittr)
library(tidyr)

They’re good charts, Brent

There are few things I like more than seeing a good political graph. Pew Research usually nails it in this department, and their graphic I saw last week was no exception. Take a look:

W - O - W. Very compelling visual with one purpose (showing that Presidential approval has always been partisan, Trump’s exceptionally so) with a bunch of fun details. Naturally I wanted to take a stab at recreating this graphic myself.

Faking data

Random number generation

If we wanted to do a faithful rendition of this graph, we’d need to hunt down the data Pew analysts used. I couldn’t find it after a cursory Google, so we’ll just make it ourselves.

I’m going to generate fake data with a simple random walk. Let’s assume some starting point for approval and that movement from this point will both occur at evenly-spaced intervals and follow a normal distribution.

mean = 0; sd = .5; n = 100
trend = Reduce(sum, rnorm(n, mean, sd), accumulate = TRUE)

approval = 70

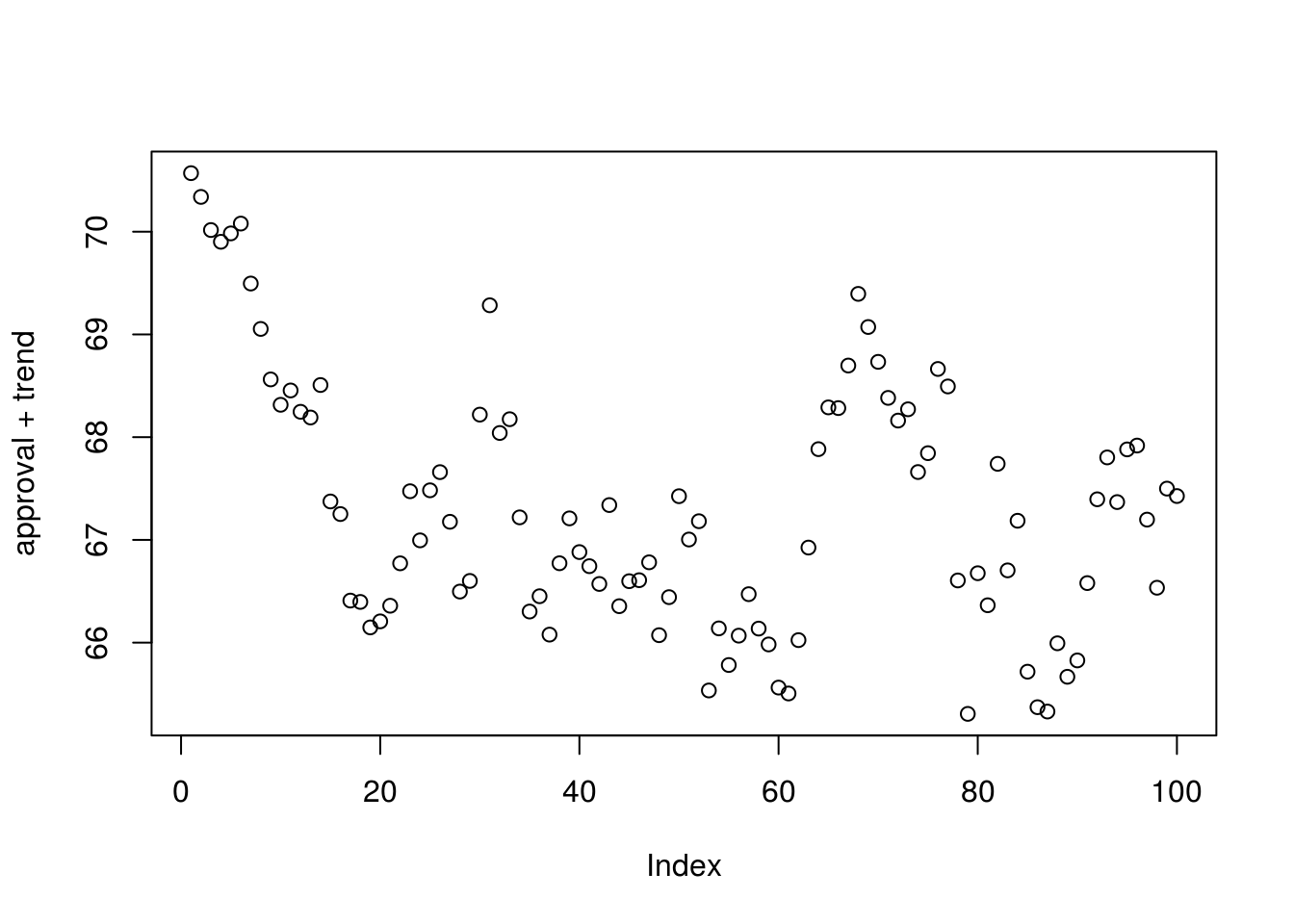

plot(approval + trend)

Kind of cool, right? Nothing too fancy going on here, but this should suffice for making graphs…Plus who doesn’t love an excuse to use functional programming?

Tidying up

We now have a method of generating one line of data. Per the graphic, we’ll also need to code parties and Presidents. This will be a bit easier. For the sake of this graphic, let’s fix ourselves at three Presidents and two parties.

parties = c("Republican", "Democrat")
presidents = c("Ford", "Pullman", "Freeman")
combinations = expand.grid(parties, presidents)
names(combinations) = c("party", "president")
combinations$approval = rep(runif(3, 60, 90), each = 2)
combinations
##        party president approval
## 1 Republican      Ford 68.08831
## 2   Democrat      Ford 68.08831
## 3 Republican   Pullman 82.65932
## 4   Democrat   Pullman 82.65932
## 5 Republican   Freeman 74.57565
## 6   Democrat   Freeman 74.57565

This is the start of our data. Next, we want to code whether the approval we’re observing is of members of the same party as the president. We’ll return these in pairs.

random_and_inverse = function() {
  x = rbinom(1, 1, .5)
  return(c(x, 1-x))
}

combinations$incumbent = unlist(replicate(3,
                                          random_and_inverse(),
                                          simplify = FALSE))

combinations = combinations %>%
  mutate(approval = ifelse(incumbent == 1,
                           approval,
                           100 - approval))

combinations
##        party president approval incumbent
## 1 Republican      Ford 68.08831         1
## 2   Democrat      Ford 31.91169         0
## 3 Republican   Pullman 82.65932         1
## 4   Democrat   Pullman 17.34068         0
## 5 Republican   Freeman 74.57565         1
## 6   Democrat   Freeman 25.42435         0

Next, we’ll want to generate our trendlines. We do this by repeating each row in this dataframe twenty times (representing 20 measures of approval during a President’s term). Then we subtract our generated trendlines.

df = combinations %>%
  slice(rep(1:n(), each = 20))

mean = 0; sd = 2; n = 20
trends = replicate(3, Reduce(sum, rnorm(n, mean, sd), accumulate = TRUE))
df$trend = df$approval - rep(trends, each=2)

Next, we have to make up a fake index variable for our x-axis. Only important thing here is that each President its own index.

unique.measurements = 3 * n
sequences = split(1:unique.measurements, cut(seq_along(1:unique.measurements), 3))
df$ix = unlist(rep(sequences, each = 2))
head(df)
##        party president approval incumbent    trend ix
## 1 Republican      Ford 68.08831         1 68.77794  1
## 2 Republican      Ford 68.08831         1 68.77794  2
## 3 Republican      Ford 68.08831         1 67.32594  3
## 4 Republican      Ford 68.08831         1 67.32594  4
## 5 Republican      Ford 68.08831         1 67.72882  5
## 6 Republican      Ford 68.08831         1 67.72882  6

Ta-da. Tidy data ready for plotting…or just about.

Un-tidy-ing up

We actually don’t want fully tidy data here - If we want to plot the area between the two trend lines, we’ll need to split our trends data into one column for Republicans and one for Democrats.

to.plot = df %>%
  select(-incumbent, -approval) %>%
  gather(variable, value, -president, -party, -ix) %>%
  spread(party, value) %>%
  mutate(max.trend = pmax(Republican, Democrat),
         min.trend = pmin(Republican, Democrat),
         max.republican = Republican > Democrat)

Plotting

ggplot(to.plot,
       aes(x = ix)) +
  geom_ribbon(aes(ymax = max.trend,
                  ymin = min.trend),
              fill = "#e3e1cd") +
  geom_line(aes(y = Republican,
                color = "Republican"), size = 1.1) +
  geom_line(aes(y = Democrat,
                color = "Democrat"), size = 1.1) +
  scale_y_continuous(limits = c(0, 100)) +
  scale_color_manual(values = c("Republican" = "#bf2f24",
                                "Democrat" = "#436685")) +
  facet_wrap(~president, scales = "free_x")

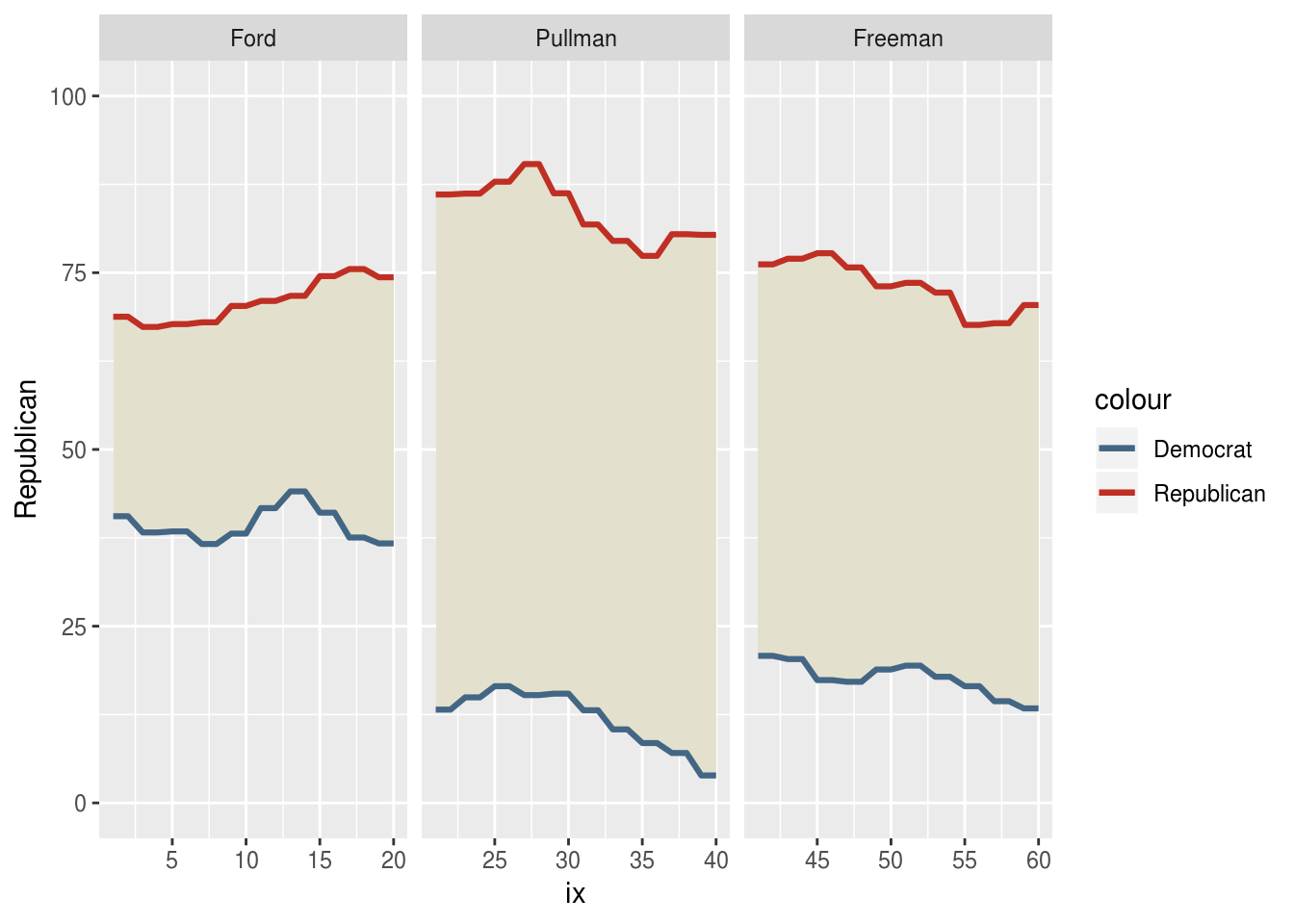

Here’s a 90% solution without any ggplot2 theme functions. I’m a pretty big fan already, but I really liked plotting the mean approval by party. To do that, I’m going to wrap this in a function call which includes summarising our data for those mean calculations.

partisanship_plot = function(df) {
  means = df %>%
      group_by(president) %>%
      summarise(Democrat = mean(Democrat),
               Republican = mean(Republican),
               ix = mean(ix)) %>%
      mutate(greater = Democrat > Republican) %>%
      gather(party, value, -ix, -president, -greater)


  ggplot(data = df,
       aes(x = ix)) +
  geom_ribbon(aes(ymax = max.trend,
                  ymin = min.trend),
              fill = "#e3e1cd") +
  geom_line(aes(y = Republican,
                color = "Republican"), size = 1.1) +
  geom_line(aes(y = Democrat,
                color = "Democrat"), size = 1.1) +
  geom_text(data = means,
            aes(label = round(value),
                color = party,
                y = ifelse(greater,
                           ifelse(party == "Democrat", 95, 5),
                           ifelse(party == "Republican", 95, 5))),
            family = "Roboto", fontface = "bold") +
  scale_y_continuous(limits = c(0, 100),
                     position = "right") +
  scale_color_manual(values = c("Republican" = "#bf2f24",
                                "Democrat" = "#436685")) +
  facet_wrap(~president, scales = "free_x") +
  labs(x = "",
       y = "",
       title = "My fake title here",
       subtitle = "% approving of president's job performance, by party") +
  guides(color = FALSE) +
  theme_bw(base_family = "Roboto") +
  theme(panel.border = element_blank(),
        plot.title = element_text(face = "bold"),
        plot.subtitle = element_text(face = "italic",
                                     color = "grey70"),
        axis.ticks = element_blank(),
        axis.text.x = element_blank(),
        strip.text = element_text(size = rel(1.1)),
        strip.background = element_blank(),
        panel.grid = element_blank(),
        panel.grid.major.y = element_line(color = "#f4f4f4",
                                          linetype = "dotted",
                                          size = 1.1))
}

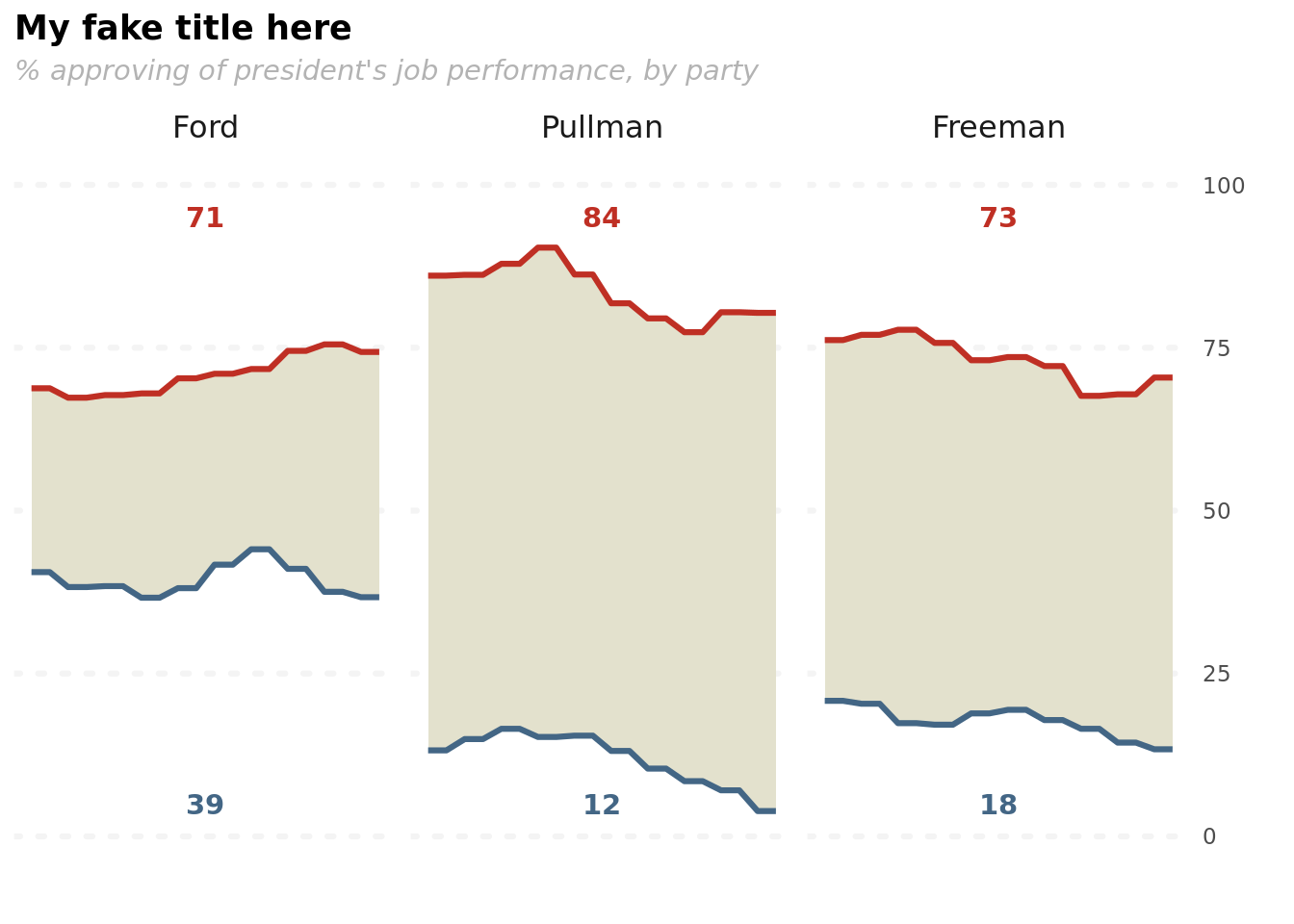

partisanship_plot(to.plot)

And that’s as far as I’ll get this one. Very cool idea, not too bad to implement…once you have the data.
